Mini blast resistant house

Mini blast resistant house

  • Mini blast resistant house

●  Introduction

The mini blast-proof house offers the fastest and most flexible security deployment with the smallest space occupation. Its core advantage lies in its ultimate mobility - a standard 40-foot high container can hold 5 sets. It is equipped with a professional-grade fresh air system inside, ensuring the continuous supply of fresh and safe air even in a closed environment.
Contact Us

Specification

Content  Specification and dimension
External  External：2200X2200X2400mm
  Internal：2000X2000X2200mm
PSI Rating  14.5PSI/100KPA
Duration  800MS
Blast resistant Door (L*W)  900×2000mm
bench(L*W)  2000×400mm(2 set)
Explosion proof Lighting(LED)  1 set
Explosion proof Smoke Detector  1 set
Explosion proof Emergency Exit Sign  1 set
Explosion proof Lighting Switch  1set
Stainless Steel Power Distribution Box(with Simple Rain Cover)  1 set
Wall mounted fresh air machine  1 set

Advantage

Overall Transportation

A 40 high cabinet can hold 5 sets

Military Field

Providing wartime command centers, medical aid stations and soldier protection fortifications for the troops

Industrial Safety

Providing emergency shelters for high-risk chemical and mining areas

Post-disaster Reconstruction

Providing temporary shelter for rescue and resettlement after natural disasters such as fire and earthquake

Social Welfare

Providing safe and secure living and working spaces for post-war reconstruction and humanitarian aid

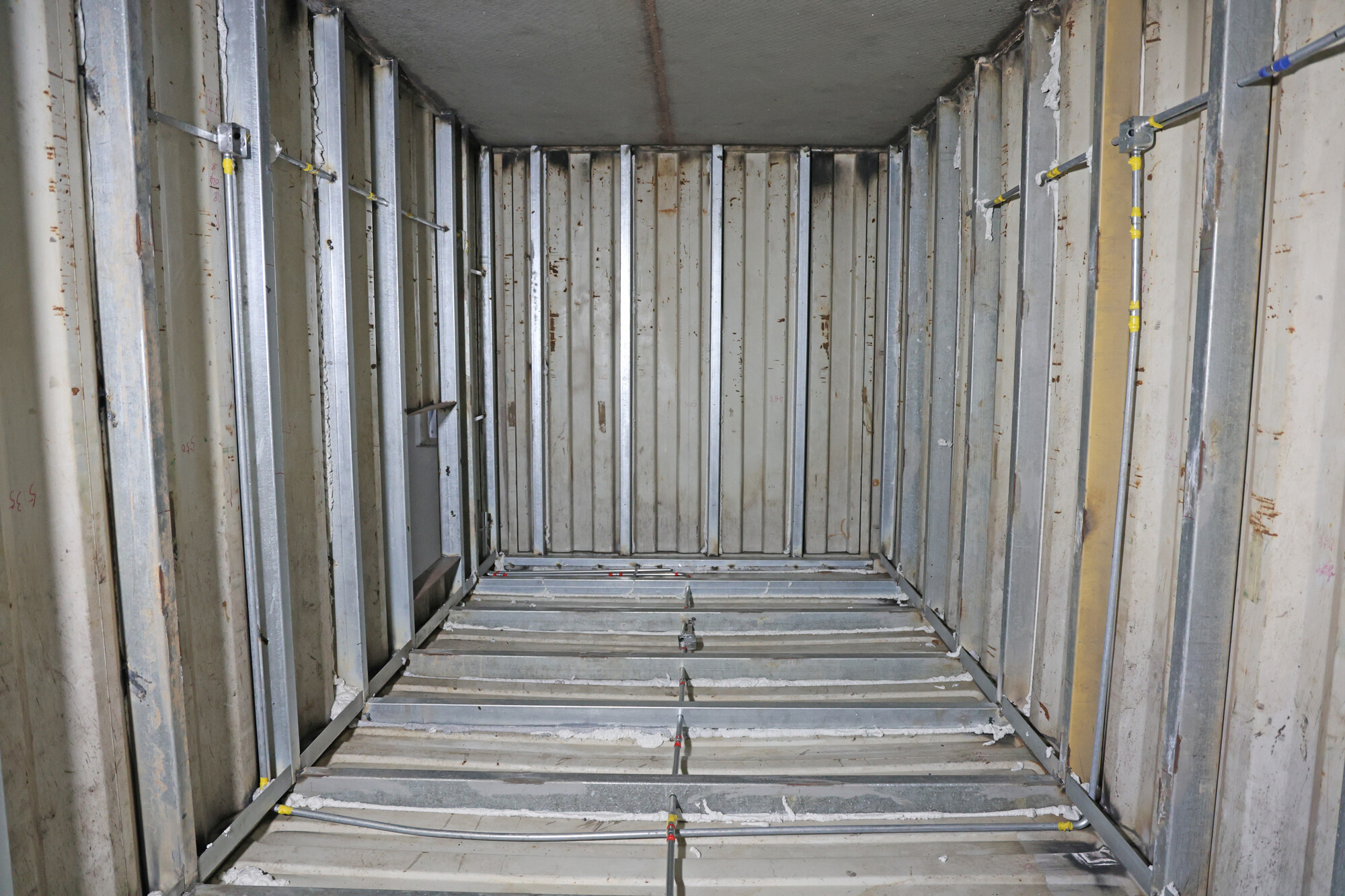

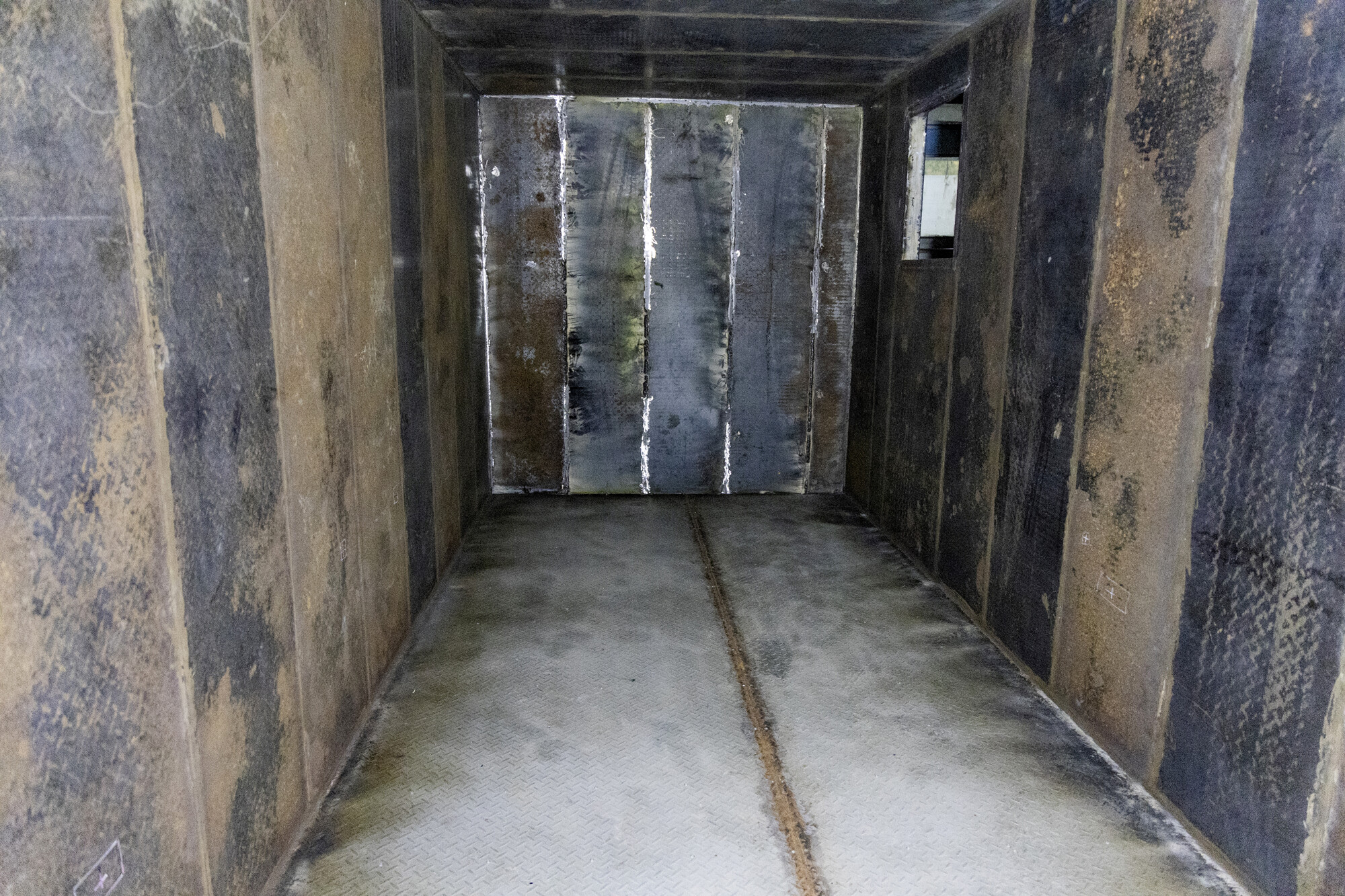

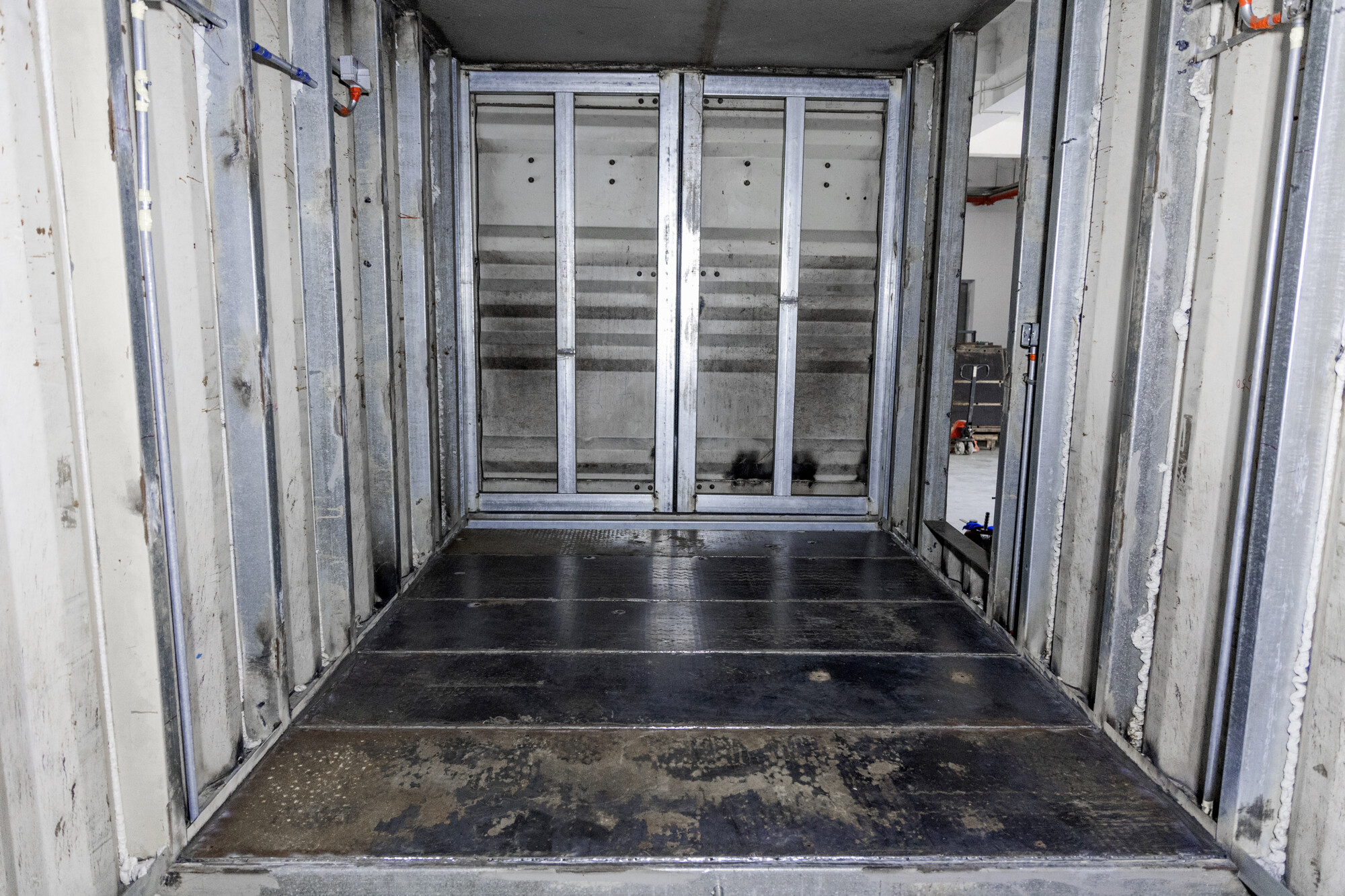

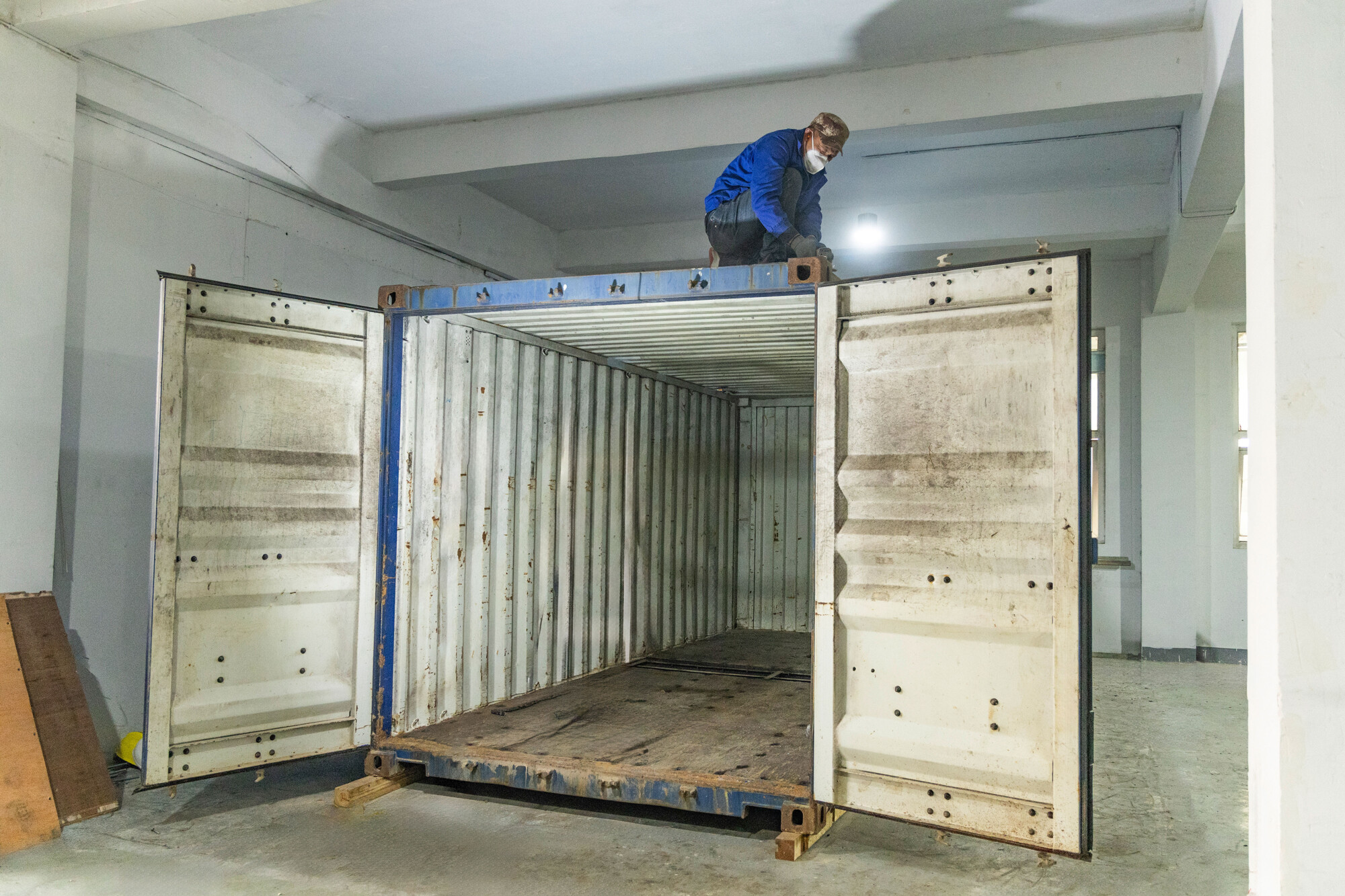

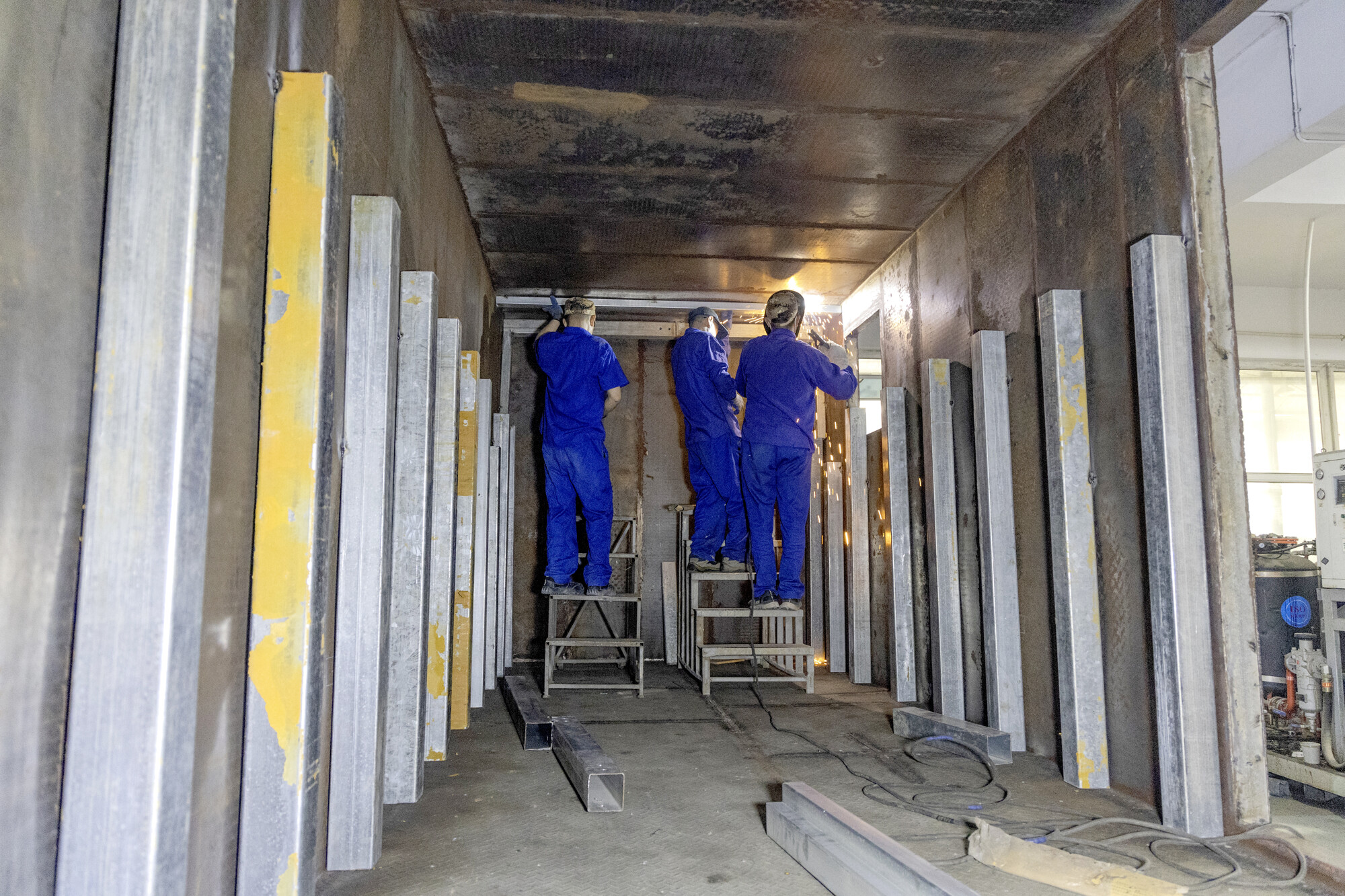

Construction Process

  • 1-(1)2
  • 1 (4)
  • 1 (5)
  • 1 (6)
  • 1 (7)
  • 5N1A5152-拷贝2

Test Report

  • 证书4

Technological innovation and R&D strength

Test ItemBlast Resistant Test
Testing UnitChemical Materials Testing Center of Nanjing University of Science and Technology
Experimental drug column1000g PETN/TNT (mass ratio 1:1) propellant column
Position of drug columnThe horizontal distance between the blast resistant house and the explosive center of the propellant column is 2.88m
Test resultsAfter being subjected to a shock wave with a pressure of 100kPa, there was no significant change in the blast resistant
