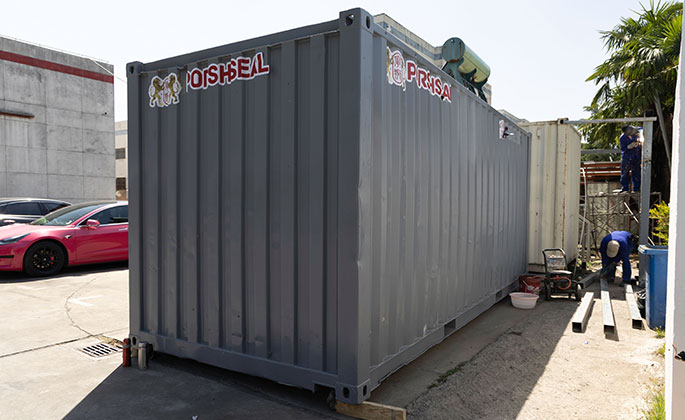

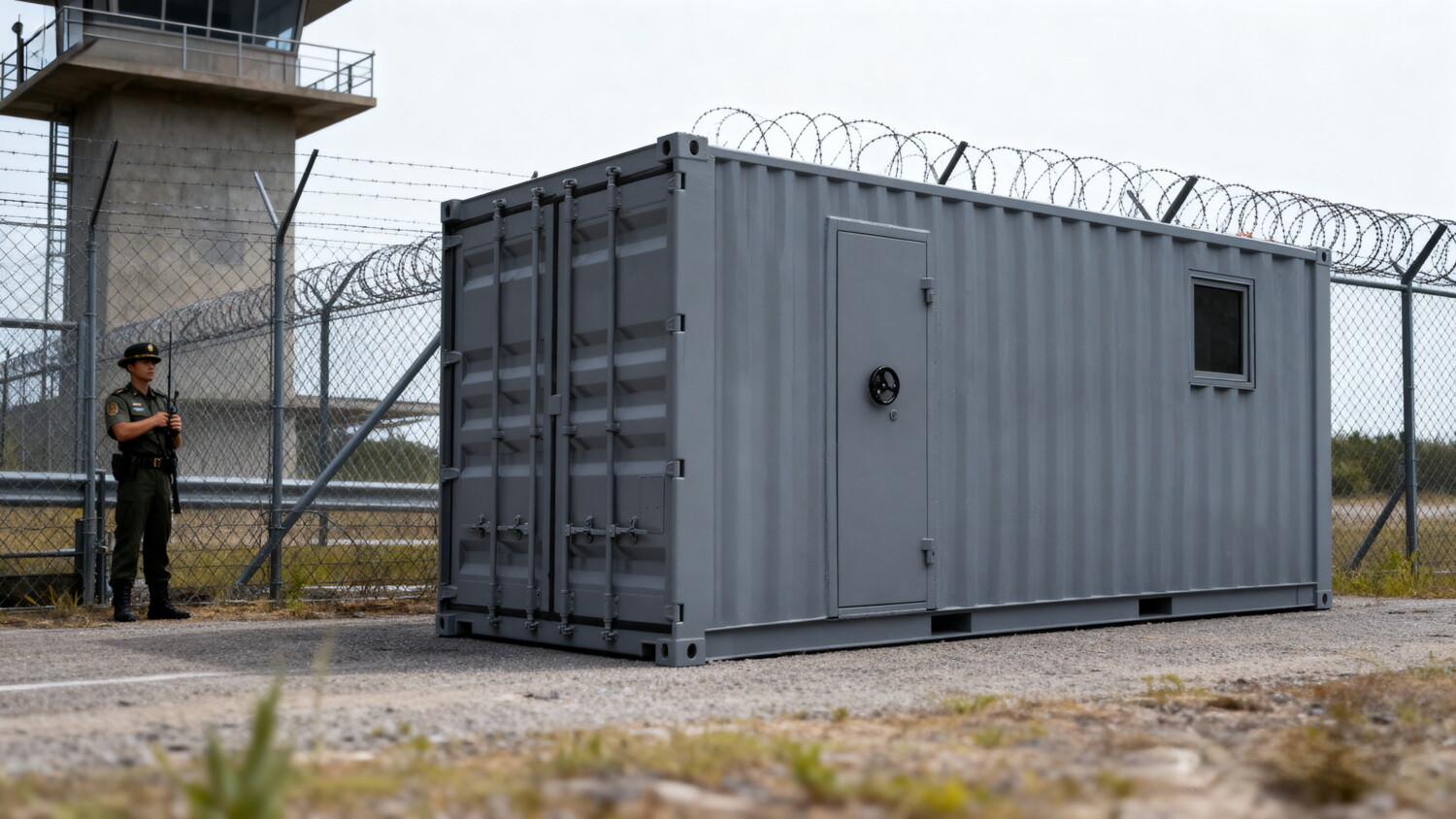

20GP & 40HQ blast resistant container house

20GP & 40HQ blast resistant container house

  Introduction

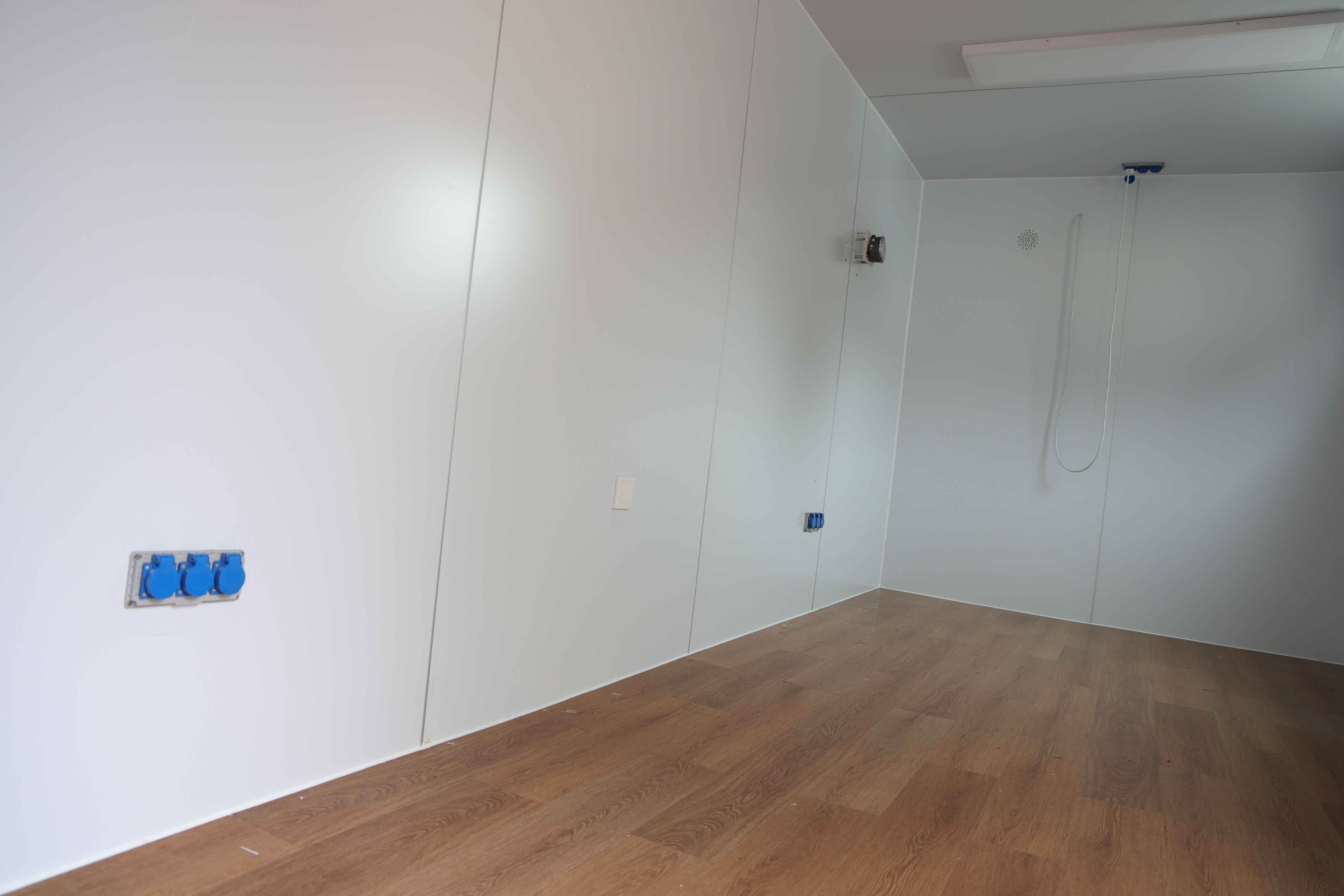

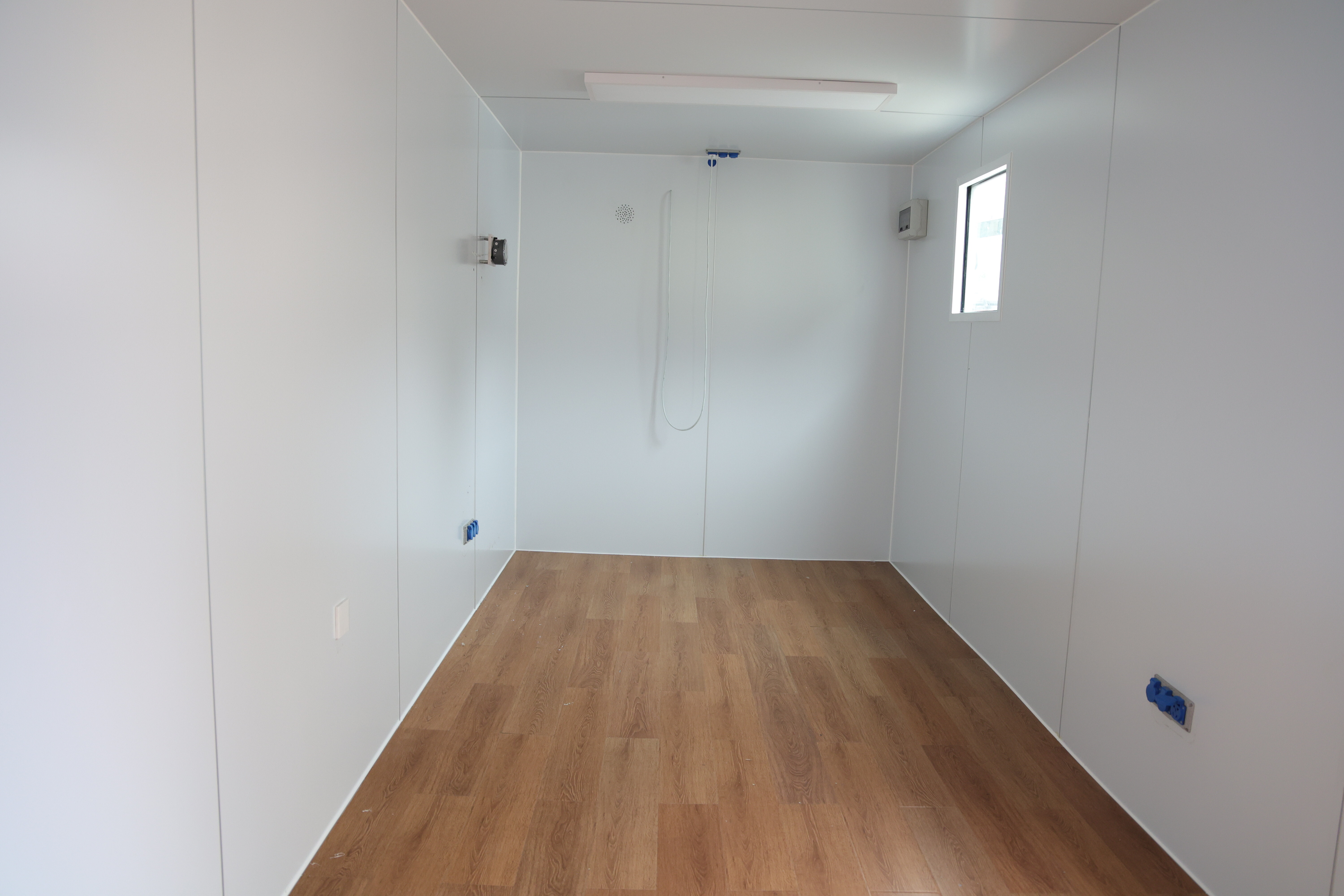

20-foot standard container and 40-foot high cube blast-resistant houses, adopting standard marine container structure, strictly follow the anti-explosion standards in design, capable of withstanding high-intensity impacts, ready for immediate loading and transportation, and can be delivered globally directly. We offer flexible integrated customization solutions. The interiors can be finely decorated according to specific application scenarios (such as frontline offices, emergency shelters, explosion-proof command stations in chemical plants, etc.), integrating water and electricity, ventilation, office facilities, etc.
Contact Us

Specification

Content20GP40HQ
Dimensions(L*W*H)External6060X2440X2590mm12200X2440X2890mm
Internal5700X2150X2140mm11800X2150X2440mm
PSI Rating14.5PSI/100KPA14.5PSI/100KPA
Duration800MS800MS
Blast resistant Door (L*W)900X2000mm900X2000mm
Blast Resistant  Buildings Window (L*W)1200×800mm1200X800mm
Blast Resistant  Buildings Lighting(LED)3 set6 set
Explosion proof Smoke Detector1 set2 set
Explosion proof Emergency Exit Sign1 set2 set
Explosion proof Lighting Switch1 set2 set
Stainless Steel Power Distribution Box(with Simple Rain Cover)1 set1 set
Explosion proof Temperature Control System3P  Wallmounted  Air Conditioner (1 unit)3P Wall mounted Air Conditioner (1 unit)

Advantage

Transportation

Full Container Direct Sea Transport

Military Field

Provide wartime command centers, medical aid stations and soldier protection fortifications for the troops

Industrial Safety

Provide emergency shelters for high-risk chemical and mining areas

Post-disaster Reconstruction

Provide temporary shelter for rescue and resettlement after natural disasters such as fire and earthquake

Social Welfare

Providing safe and secure living and working spaces for post-war reconstruction and humanitarian aid

Application Scenario

  • 边境哨所...

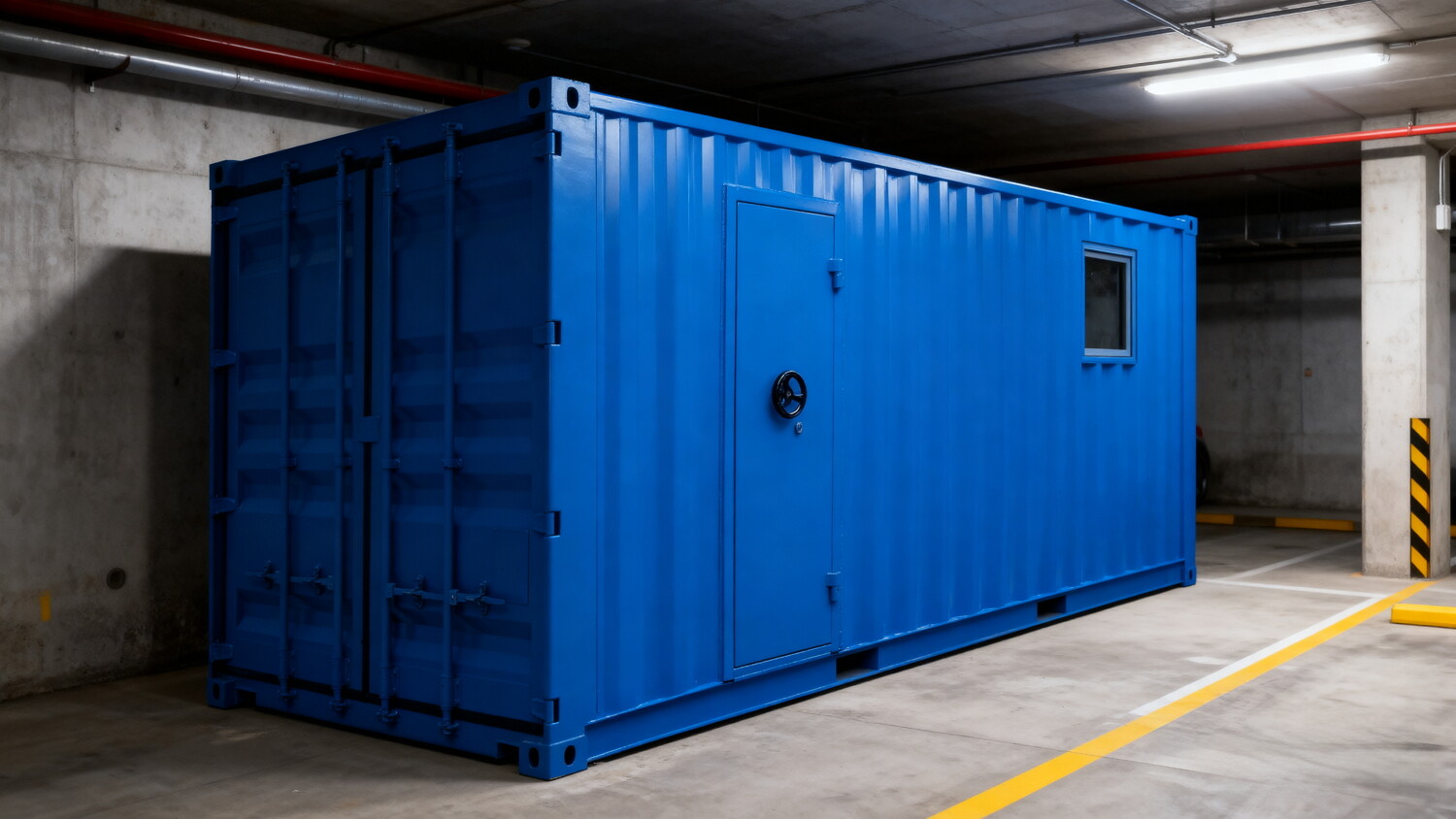

  • 地下储藏室...

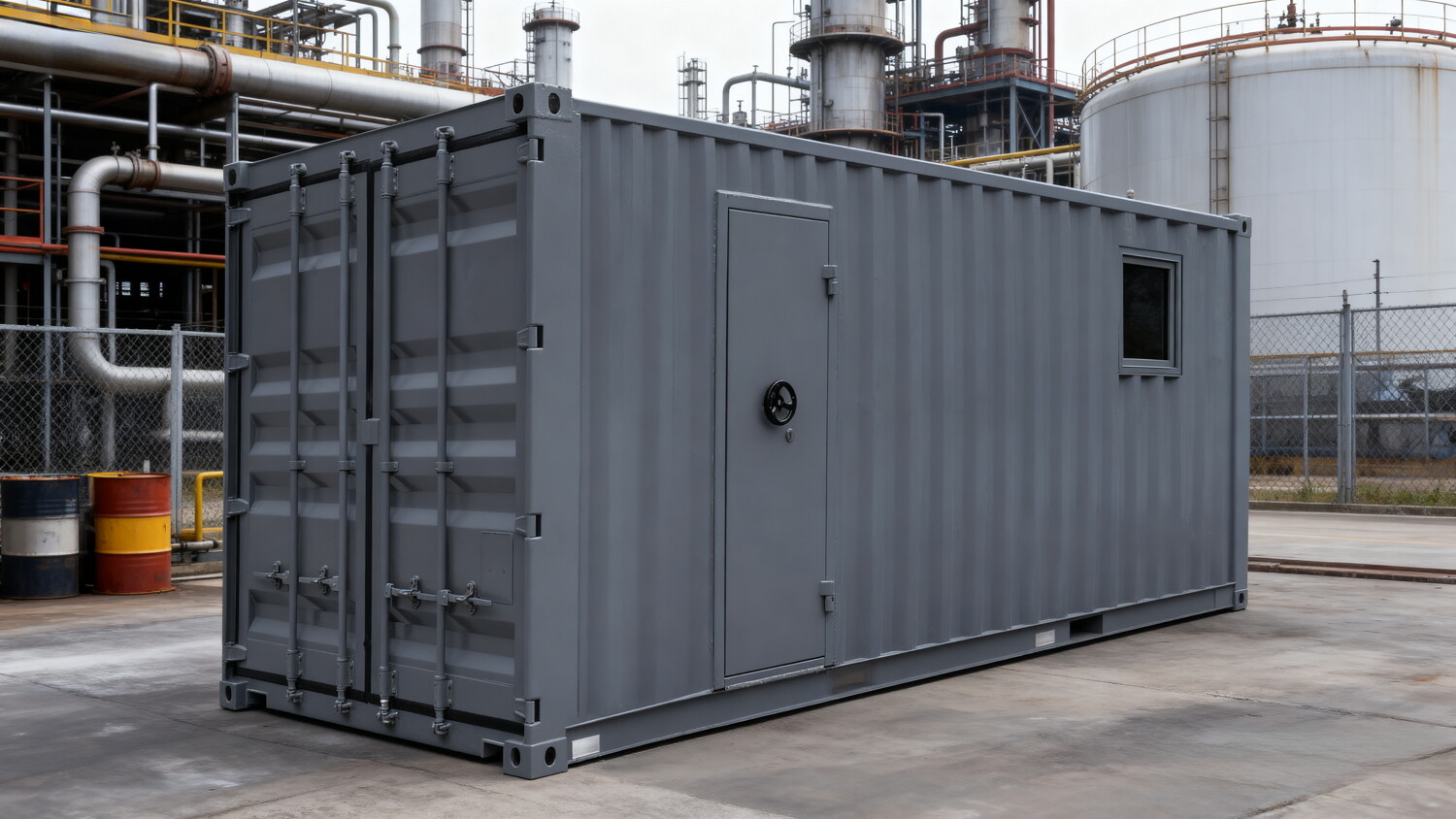

  • 化工厂,

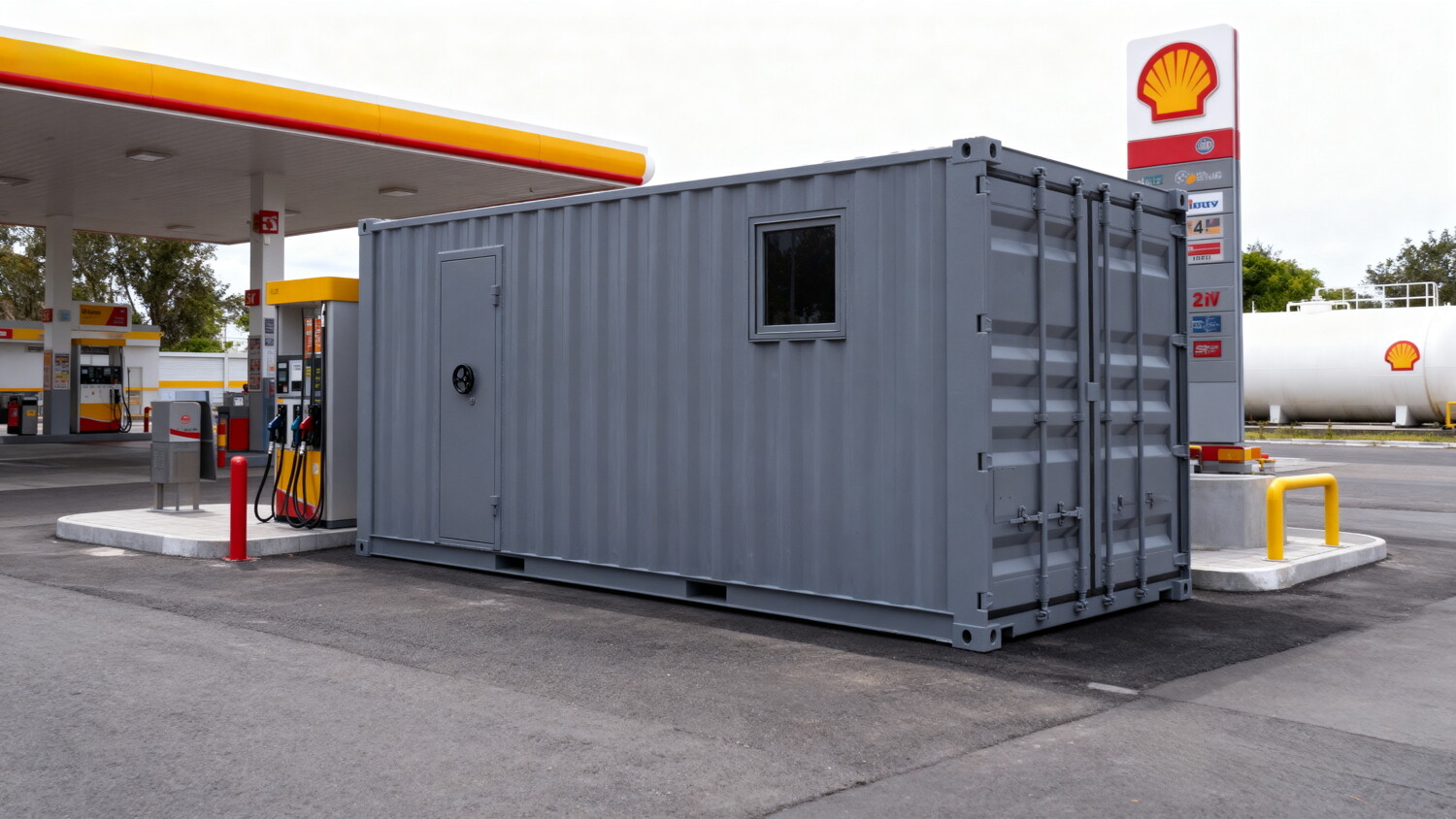

  • 加油站

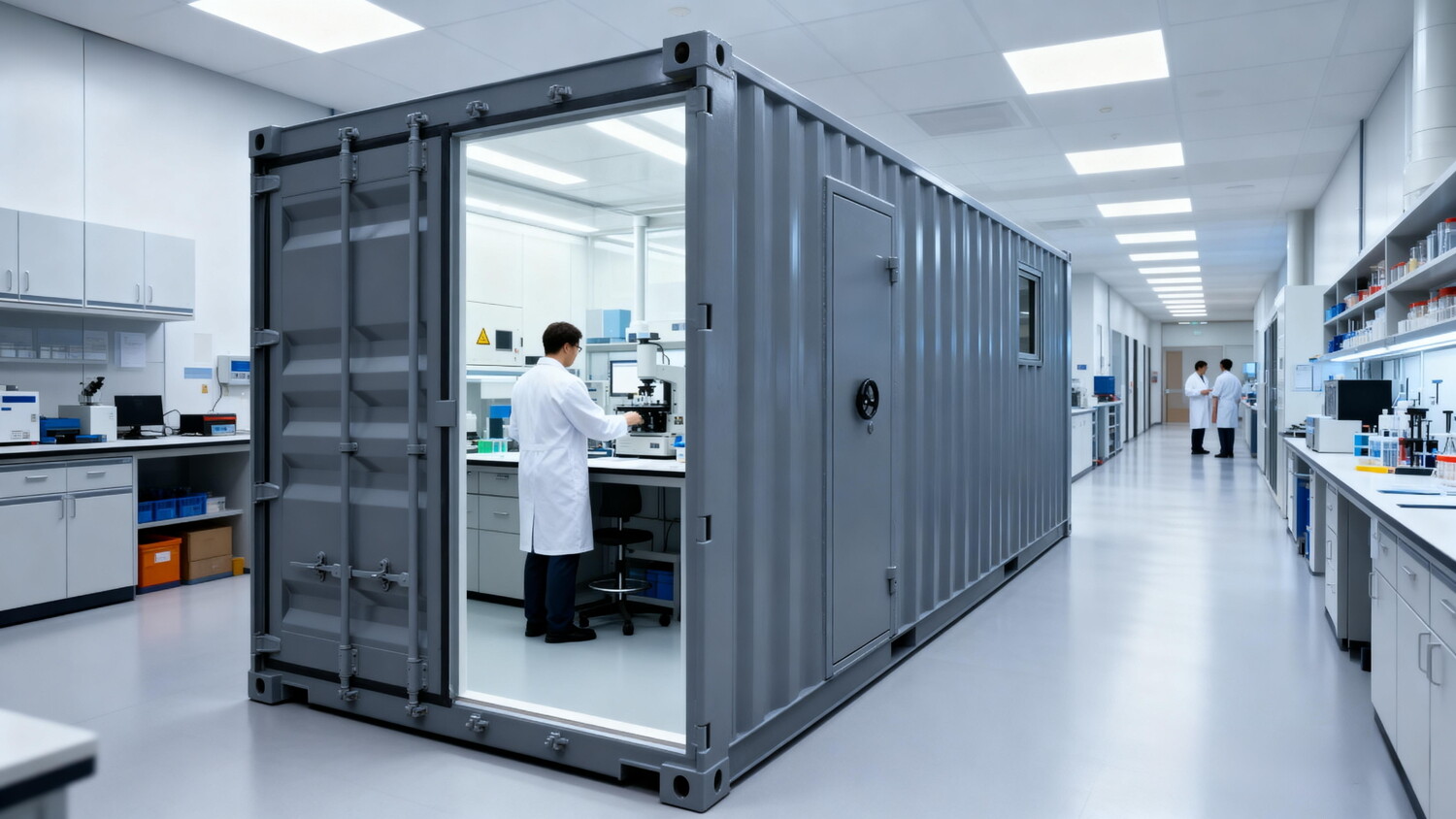

  • 实验室

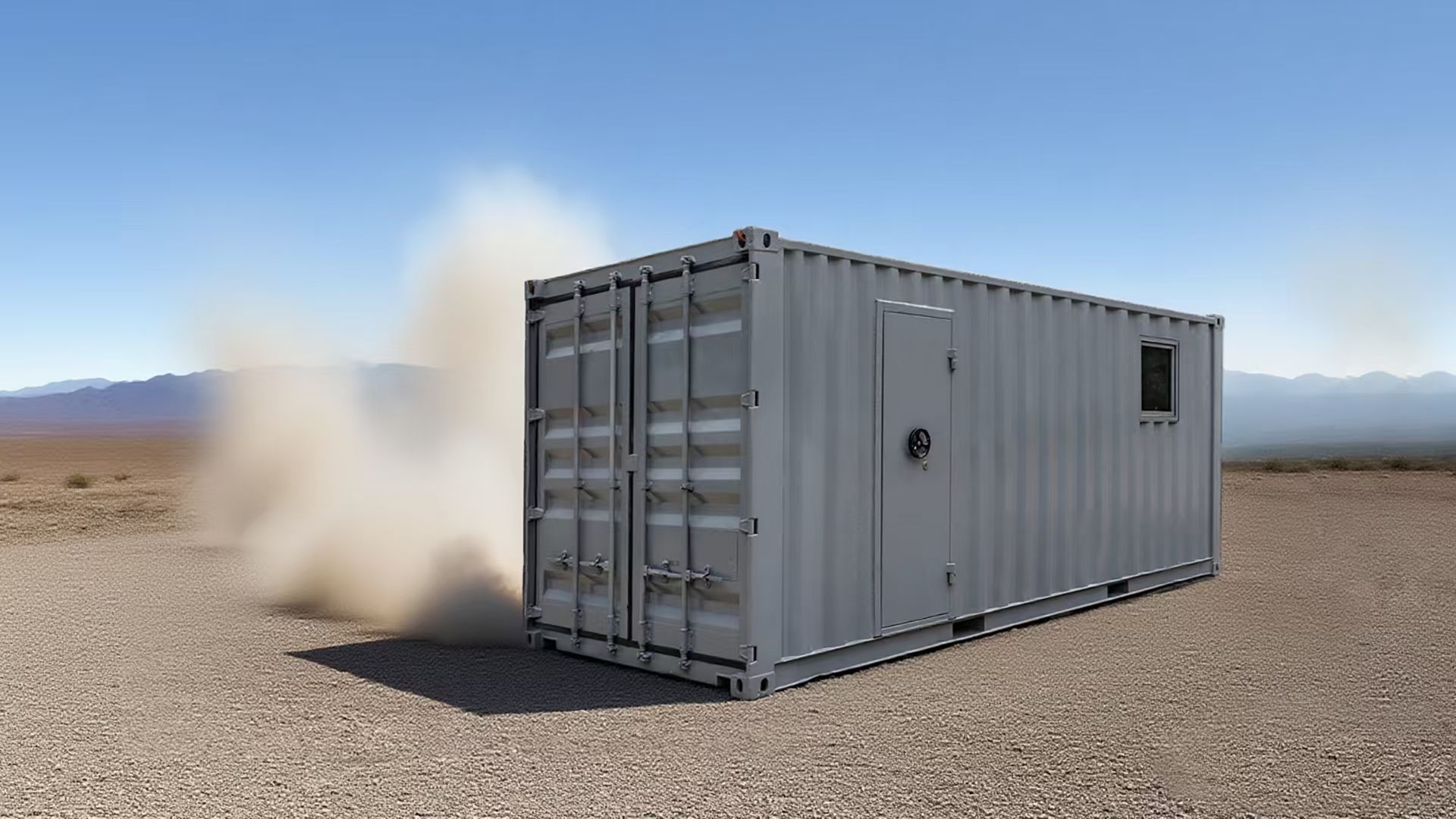

Test Report

Technological innovation and R&D strength

Test ItemBlast Resistant Test
Testing UnitChemical Materials Testing Center of Nanjing University of Science and Technology
Experimental drug column1000g PETN/TNT (mass ratio 1:1) propellant column
Position of drug columnThe horizontal distance between the blast resistant house and the explosive center of the propellant column is 2.88m
Test resultsAfter being subjected to a shock wave with a pressure of 100kPa, there was no significant change in the blast resistant
